Slimline

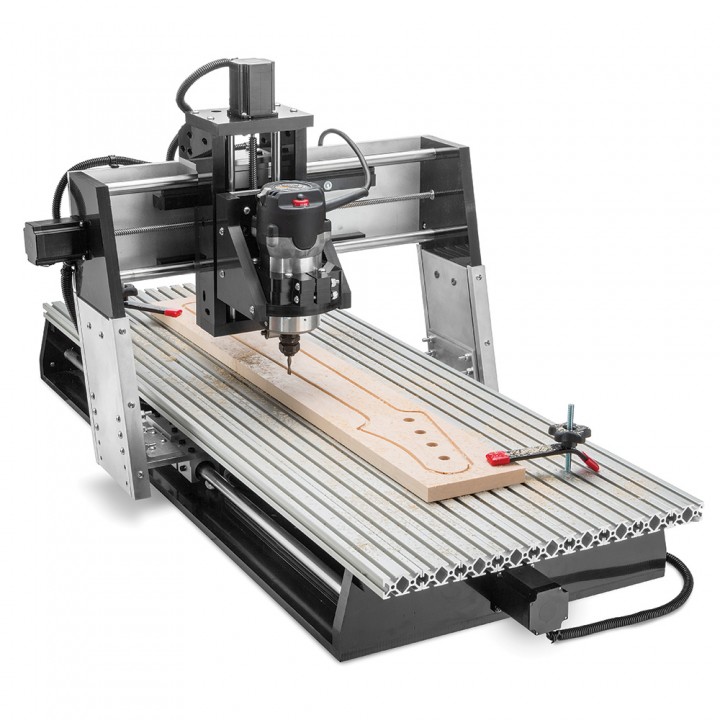

Slimline CNC

XYZ travel	16" x 36 "x 7"
Power Requirements	120V, 60Hz, 10A fuse, Single Phase
Generator/UPS requirements	CNC machine alone: 4A, 120V or 480W   w/ Router: 10A, 120V or 1200W   w/ Spindle: 17A, 120V or 2000W
Surge Protector requirements	15A
CNC Shark Computer Operating Software	Shark Control Panel 1.6 – No Longer supported Shark Control Panel 2.1 W/Virtual Zero -Download Here Universal Control Panel 3.0 Build 10 – (Laser Use Only) for Sharks CNC Machines made prior to 2017 without an LCD Pendant –Download Here
Compatible Routers	Bosch 1617 and 1618   Porter-Cable 890 Series   Porter-Cable 690 Series (6902VS must be manually started)   DeWalt 610, 616, 618
Compatible Clamps	20033 -Router Clamp - for 2 1/4 HP routers 20023 -Spindle Clamp 20040 -Palm Router Clamp - Dewalt/Porter Cable 20038 -Bosch 1 HP clamp
Clamp Upgrades	21203 -Aluminum Router Clamp Conversion Kit 21204 -Aluminum Spindle Clamp Upgraded Kit
Compatible Accessories	20097 - HD Controller and Pendant Kit  20141 - Next Wave CNC Touch Plate 20002 – 2 Watt Laser Module 20123 – 7 Watt Laser Module *Lasers require an interface cable 20134  or 20015* 20004 - SHARK-CNC-2HP-110-V-SPINDLE-KIT  20010 - CNC Shark 4th Axis Table Top Kit  20170 - HD Series Dust Boot 20281 - Shark Tooth CNC Drawing Tool

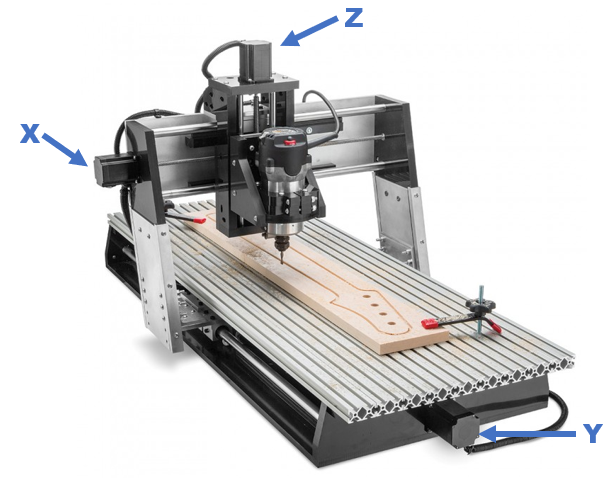

As with all machines, after wear and tear, some parts may need to be replaced to keep your machine running at its best. Here is a list of the primary parts organized by axis. Please also see our Lubrication and Maintenance Instructions.

Z-Axis	Item#	Description
Bearing	200034	LME16LUU - 16MM-BEARING
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204215	179" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	207063	1/2'' T nut

X-Axis	Item#	Description
Bearing	202426	SME20LUU
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204196	134" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	202493	3/8" T-nut
Drag Chain	205044	HD510/520 Gantry Drag Chain

Y-Axis	Item#	Description
Bearing	202426 202427	SME20LUU - Long Bearing SME20UU - Short Bearing
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204189	89" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	207063	1/2" T-nut
T-track	204187	63" Red Aluminum T-track
