Shark Pro & Pro Plus

Shark Pro Plus

Shark Pro

XYZ travel	Std deck: 24" x 24" x 4"
Power Requirements	120V, 60Hz, 10A fuse, Single Phase
Generator/UPS requirements	CNC machine alone: 4A, 120V or 480W   w/ Router: 10A, 120V or 1200W
Surge Protector requirements	15A
CNC Shark Computer Operating Software	Shark Control Panel 1.6 – No Longer supported Shark Control Panel 2.1 W/Virtual Zero -Download Here Universal Control Panel 3.0 Build 10 – (Laser Use Only) for Sharks CNC Machines made prior to 2017 without an LCD Pendant –Download Here
Compatible Routers	Bosch Colt 1.0HP PR20EVS DeWalt DWP611, DeWalt DCW600 Porter-Cable 450PK
Compatible Clamps	20043 -Dewalt/Porter Cable Router Clamp (Not for HD) 20041 -Bosch Colt 1HP Router Clamp (Not for HD)
Clamp Upgrades	Aluminum Clamp adapter kits are not compatible with this CNC machine
Compatible Accessories	20097 - HD Controller and Pendant Kit  20141 - Next Wave CNC Touch Plate 20002 – 2 Watt Laser Module 20123 – 7 Watt Laser Module *Lasers require an interface cable 20134  or 20015* 20081 -CNC SHARK, PRO, AND PRO PLUS DUST BOOT 20281 - Shark Tooth CNC Drawing Tool

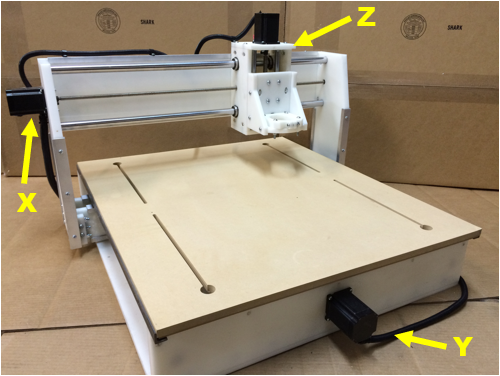

As with all machines, after wear and tear, some parts may need to be replaced to keep your machine running at its best. Here is a list of the primary parts organized by axis. Please also see our Lubrication and Maintenance Instructions.

Z-Axis	Item#	Description
Bearing		LME16UU - 16MM-BEARING - no longer carried. Can be purchased at BearingsDirect or on Amazon.
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204215	179" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	Due to running changes and part availability, multiple types of t-nuts were used in the life of this model. Please check the links and match them to what is on your machine.	1/2"-8 Thread 2:1 Speed Nut for Fast-Travel Ultra-Precision Lead Screw – 2 start 1/2"-8 Thread 4:1 Speed Nut for Fast-Travel Ultra-Precision Lead Screw - 4 start

X-Axis	Item#	Description
Bearing		LME20UU- 20MM-BEARING - no longer carried. Can be purchased at VXB Bearings or on Amazon.
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204196	134" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	Due to running changes and part availability, multiple types of t-nuts were used in the life of this model. Please check the links and match them to what is on your machine.	3/8"-10 Thread Flange Nut for Fast-Travel Ultra-Precision Lead Screw – 2 start 3/8"-12 Thread Flange Nut for Fast-Travel Ultra-Precision Lead Screw – 3 start 3/8"-8 Thread Flange Nut for Fast-Travel Ultra-Precision Lead Screw – 4 start

Y-Axis	Item#	Description
Bearing		LME20UU- 20MM-BEARING - no longer carried. Can be purchased at VXB Bearings or on Amazon.
Motor	204172	Nema 23-76 w/Connector
Motor Cable	204189	89" DB9 Motor Cable
Coupler	20046	1/4 " MOTOR SHAFT COUPLER
Set Screws	20058	COUPLER BOLTS
T-nut	Due to running changes and part availability, multiple types of t-nuts were used in the life of this model. Please check the links and match them to what is on your machine.	1/2"-8 Thread 2:1 Speed Nut for Fast-Travel Ultra-Precision Lead Screw – 2 start 1/2"-8 Thread 4:1 Speed Nut for Fast-Travel Ultra-Precision Lead Screw - 4 start
