MANUAL: CNC Shark HD5 Owners Manual
Shark HD510
| Table dimensions | 28'' x 36'' |
| XYZ travel | 25'' x 25'' x 7'' |
| Overall dimensions | 36-1/4'' W x 38'' L x 24-1/2'' H |
Shark HD520
| Table dimensions | 28'' x 63'' |
| XYZ travel | 25'' x 50'' x 7'' |
| Overall dimensions | 36-1/4'' W x 63'' L x 24-1/2'' H |
| Power Requirements |
120V, 60Hz, 10A fuse, Single Phase |
| Generator/UPS requirements |
CNC machine alone: 4A, 120V or 480W w/ Router: 10A, 120V or 1200W w/ Spindle: 17A, 120V or 2000W |
| Surge Protector requirements | 15A |
| CNC Shark Computer Operating Software |
21207 - Ready2Control-Basic - Free with Next Wave Portal account |
| Compatible Routers |
Bosch 1617 and 1618 Porter-Cable 890 Series Porter-Cable 690 Series (6902VS must be manually started) DeWalt 610, 616, 618 |
| Compatible Clamps |
20148 - HD5 Aluminum Spindle Clamp Kit 21209 - HD5 Aluminum Router Clamp Kit |
| Compatible Accessories |
20141 - Next Wave CNC Touch Plate 20002 – 2 Watt Laser Module 20123 – 7 Watt Laser Module 21220 – 20 Watt Laser Module 20199 - 2HP AIR Cooled Spindle Kit 20157 - CNC Shark HD5 2HP 110 V Spindle System 20160 - 3HP Water Cooled Spindle Kit 20024 - Mini 4th Axis system 20010 - CNC Shark 4th Axis Table Top Kit 20170 - HD Series Dust Boot 20176 - 3D Digitizing Probe Kit 20281 - Shark Tooth CNC Drawing Tool 20180 - HD510 Spoil Board Kit 20185 - HD520 Spoil Board Kit |
As with all machines, after wear and tear, some parts may need to be replaced to keep your machine running at its best. Here is a list of the primary parts organized by axis. Please also see our Lubrication and Maintenance Instructions.
HD510
| Z-Axis | Item# | Description |
| Bearing | 204013 | HLH 15 Non-flange Block - type2 |
| Motor | 204172 | Nema 23-76 w/Connector |
| Motor Cable | 204215 | 179" DB9 Motor Cable |
| Coupler | 204216 | Z-axis Split coupler - Rev C |
| Set Screws | 203025 | 10/32 x 3/8 Socket Set Cup Point |
| T-nut | 204213 | 1/2" T-nut |
| T-nut Holder |
204134 204235 |
HDPE Z Bearing Block T-nut Holder - TOP HDPE Z Bearing Block T-nut Holder - BOTTOM |
| X-Axis | Item# | Description |
| Bearing | 204013 | HLH 15 Non-flange Block - type2 |
| Motor | 204172 | Nema 23-76 w/Connector |
| Motor Cable | 204196 | 134" DB9 Motor Cable |
| Coupler | 204020 | Split Coupler 0.375 (3/8)" x 5/8 |
| Set Screws | 204151 | 10/32 x 5/16 Socket Set Cup Point |
| T-nut | 202493 | 3/8" T-nut |
| T-nut Holder | 204133 | HDPE X Bearing Block T-nut Holder |
| Drag Chain | 205044 | HD510/520 Gantry Drag Chain |
| Y-Axis | Item# | Description |
| Bearing | 203017 | SC30LUU |
| Motor | 204172 | Nema 23-76 w/Connector |
| Motor Cable | 204191 | 89" DB9 Motor Cable |
| Coupler | 204021 | Split Coupler 0.5" x 1 |
| Set Screws | 203025 | 10/32 x 3/8 Socket Set Cup Point |
| T-nut | 207063 | 1/2" T-nut |
| T-nut Holder | 100143 | HD500/510 HDPE Base T-nut Holder |
| T-track | 300405 | 36" Red Aluminum |

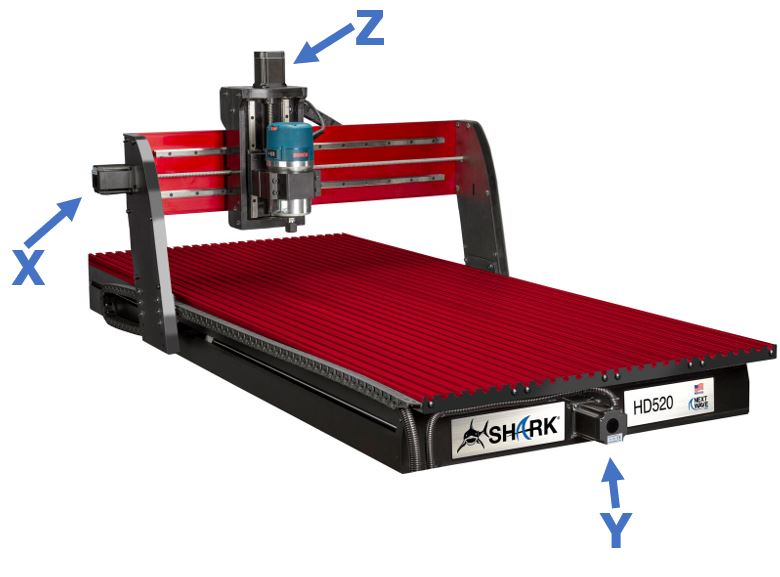

HD520 - See Above for Z and X-axis.
| Y-Axis | Item# | Description |
| Bearing |
202427 202426 |
|
| Motor | 204172 | Nema 23-76 w/Connector |
| Motor Cable | 204189 | 63" DB9 Motor Cable |
| Coupler | 204021 | Split Coupler 0.5" x 1 |
| Set Screws | 203025 | 10/32 x 3/8 Socket Set Cup Point |
| T-nut | 207063 | 1/2" T-nut |
| T-nut Holder | 204279 | 520 HDPE Base T-nut Holder |
| T-track | 204187 | 63" Red Aluminum |
