MANUAL: Shark SD110 -120 Series Manual
Shark SD110
Page Contents:
- About the SD110
- Unpack and Assembly Video
- Simple Parts List

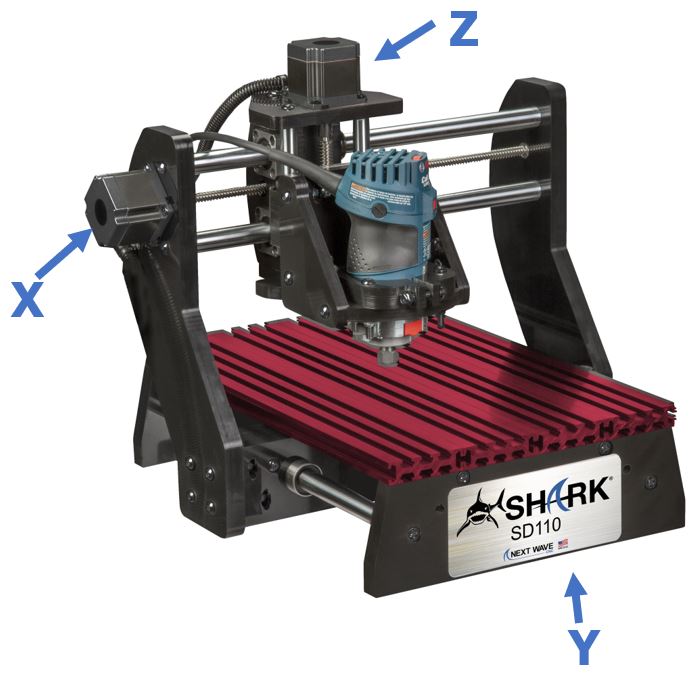

About the SD110
| Table dimensions | 12'' x 18" |
| XYZ travel | 12'' x 13'' x 3'' |
| Overall dimensions |
19-1/2 ''W x 20-1/2'' L x 18''H |
| Power Requirements |
120V, 60Hz, Single Phase |
| Generator/UPS requirements |
CNC machine alone: 4A, 120V or 480W with Router: 10A, 120V or 1200W |
| Surge Protector requirements | 15A |
| CNC Shark Computer Operating Software |
21207 - Ready2Control-Basic - Free with Next Wave Portal account |
| Compatible Palm Routers |
Bosch Colt 1.25HP GFK125CEN |
| Compatible Clamps |
20014 – Bosch 1.25HP Palm Router Clamp – Piranha and SD Series 20016 – Bosch 1HP Palm Router Clamp – Piranha and SD Series 20039 – DeWalt/Porter Cable Router Clamp – Piranha and SD Series |
| Compatible Accessories |
20141 - Next Wave CNC Touch Plate 20002 – 2 Watt Laser Module 20024 - Mini 4th Axis system 20176 - 3D Digitizing Probe Kit 20281 - Shark Tooth CNC Drawing Tool |
Simple Parts List
As with all machines, after wear and tear, some parts may need to be replaced to keep your machine running at its best. Here is a list of the primary parts organized by axis. Please also see our Lubrication and Maintenance Instructions.
| Z-Axis | Item# | Description |
| Bearing | 205046 | LMEK16LUU |
| Motor | 207025 | Nema 23-56 w/Connector |
| Motor Cable | 204190 | 70" DB9 Motor Cable |
| Coupler | 204021 | Split Coupler 0.5" x 1 |
| Set Screws | 203025 | 10/32 x 3/8 Socket Set Cup Point |
| T-nut | 207063 | 1/2" T-nut |
| X-Axis | Item# | Description |
| Bearing | 200033 | LMEK20LUU |
| Motor | 207025 | Nema 23-56 w/Connector |
| Motor Cable | 204188 | 55" DB9 Motor Cable |
| Coupler | 204020 | Split Coupler 0.375 (3/8)" x 5/8 |
| Set Screws | 204151 | 10/32 x 5/16 Socket Set Cup Point |
| T-nut | 202493 | 3/8" T-nut |
| Y-Axis | Item# | Description |
| Bearing | 200033 | LMEK20LUU |
| Motor | 207025 | Nema 23-56 w/Connector |
| Motor Cable | 204188 | 55" DB9 Motor Cable |
| Coupler | 204021 | Split Coupler 0.5" x 1 |
| Set Screws | 203025 | 10/32 x 3/8 Socket Set Cup Point |
| T-nut | 207063 | 1/2" T-nut |
| T-track | 204185 | 18" Red Aluminum |
