Shark HD 4.0

MANUAL: CNC Shark HD4 Owners Manual

Shark HD4.0

Table dimensions	28'' x 36''
XYZ travel	25'' x 25'' x 7''
Overall dimensions	36-1/4'' W x 38'' L x 24-1/2'' H

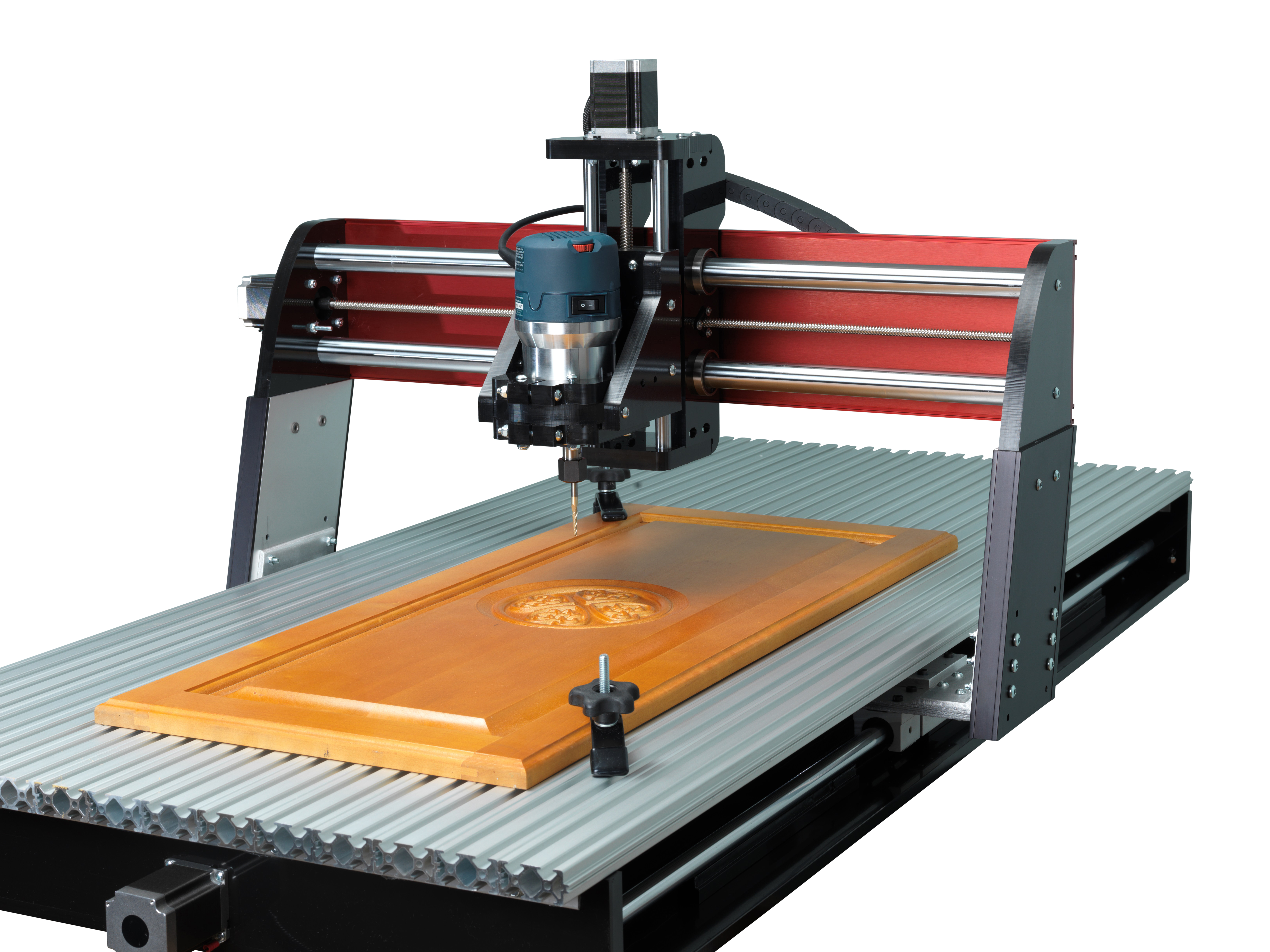

Shark HD4.0 Extended Bed

Table dimensions	28'' x 63''
XYZ travel	25'' x 25'' x 7''
Overall dimensions	36-1/4'' W x 63'' L x 24-1/2'' H

Power Requirements	120V, 60Hz, 10A fuse, Single Phase
Generator/UPS requirements	CNC machine alone: 4A, 120V or 480W   w/ Router: 10A, 120V or 1200W   w/ Spindle: 17A, 120V or 2000W
Surge Protector requirements	15A
CNC Shark Computer Operating Software	21207 - Ready2Control-Basic - Free with Next Wave Portal account   21205 - Ready2Control w/Virtual Zero Unlimited
Compatible Routers	Bosch 1617 and 1618   Porter-Cable 890 Series   Porter-Cable 690 Series (6902VS must be manually started)   DeWalt 610, 616, 618
Compatible Clamps	20033 - CNC Shark HD Router Clamp 20023 - CNC Shark HD Spindle Clamp
Clamp Upgrades	21203 - Aluminum Router Clamp Conversion Kit   21204 - Aluminum Spindle Clamp Upgraded Kit
Compatible Accessories	20141 - Next Wave CNC Touch Plate   20002 – 2 Watt Laser Module   20123 – 7 Watt Laser Module   20004 - CNC Shark 2HP 110v Spindle Kit   20024 - Mini 4th Axis system   20010 - CNC Shark 4th Axis Table Top Kit   20170 - HD Series Dust Boot   20176 - 3D Digitizing Probe Kit   20281 - Shark Tooth CNC Drawing Tool   20185 - HD520 Spoil Board Kit   20180 - HD510 Spoil Board Kit
